Description

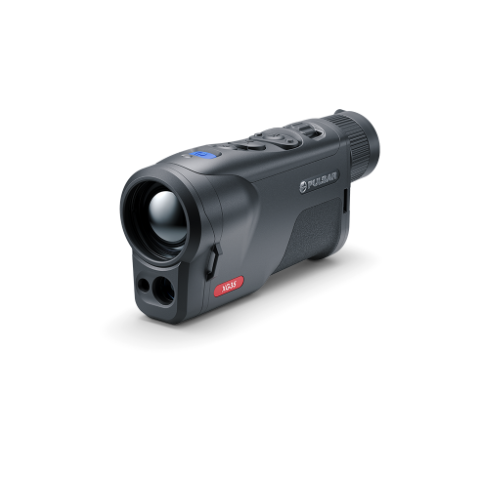

ORYX LRF XG35
Built for long and tough hunts, the Pulsar Oryx LRF XG35 is compact, delivers an extra-high detail thermal image, and comes with a next-gen rangefinder.
Main specifications
Sensor: @ 12 µm 640×480
Objective lens: F35 / 1.0
Magnification, x: 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees: 12.5×9.4
FOV (HxV), m@100m: 21.9
Detection range: 1800 m
Sensor
Type: uncooled
Resolution, pixels: 640×480
Pixel pitch, µm: 12
Sensor NETD, mK: < 40
System NETD, mK: < 20
Frame rate, Hz: 50
Optics
Objective lens: F35 / 1.0
Magnification, x: 2.5 – 20 (x8 digital zoom)
FOV (HxV), degrees: 12.5×9.4
FOV (HxV), m@100m: 21.9
Eye relief, mm: 14
Display
Type: AMOLED HD
Resolution, pixels: 1024×768
Range performance
Detection range: 1800 m
Laser rangefinder
Max. measuring range: 1500m
Measurement accuracy, m: ± 1
Safety class for laser equipment according to IEC 60825-1:2014 : 1
Wavelength, nm: 905
Video recorder
Video / photo resolution, pixel: 1024×768
Video / photo format: .mp4 / .jpg
Build-in memory: 64GB
WI-FI
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, Ghz: 2.4 / 5
Environmental characteristics
Degree of protection IP code (IEC60529): IP67
Operating temperature range, °С: -25 – +40
Connections and compatibilities
Mount type: 1/4″ socket
Supported application: Stream Vision 2
Power supply
Output voltage, V: 3.0 – 4.2
Battery type: APS 5 Li-ion Battery Pack / 4900 mAh / DC 3.7 V (removable) & Li-Ion Battery Pack / 3200 mAh / DC 3.7 V (built-in)
Capacity, mAh: 4900
Operating time on battery pack, hat t=22°С: 12 (built-in + removable)
External power supply, V: 5V; 9V (USB Type-C Power Delivery)
Weight & size
Body material: Magnesium alloy
Dimensions, mm: 179х52х77
Weight, kg: 0.5
