Description

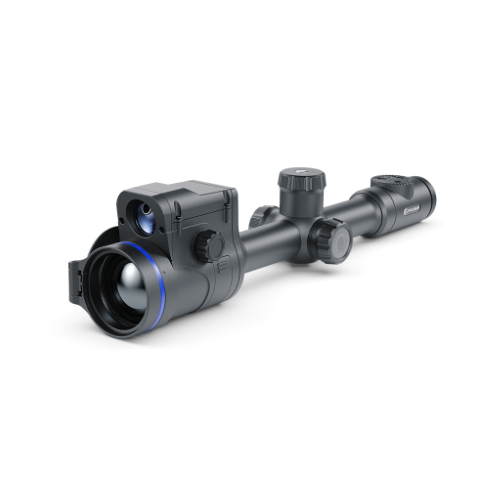

PULSAR THERMION 2 LRF XP50 PRO
The Pulsar Thermion 2 LRF XP50 Pro thermal imaging riflescope matches the best of all worlds: high thermal sensitivity, big sensor resolution, built-in laser rangefinder, and a powerful detection range make it a well-rounded device for all situations.
Main specifications
Sensor: @ 17 µm 640×480
Objective lens: F50 / 1.0
Magnification: 2 – 16
FOV (HxV), degrees: 12.4 x 9.3
FOV (HxV), m@100m: 21.8 x 16.3
Detection range: 1800 m
Reticle
Click range, H/V, mm at 100m: 4200/4200
Click value, H/V, mm at 100m: 21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х
Number of preloaded reticles: 10
Sensor
Type: uncooled
Resolution, pixels: 640×480
Pixel pitch, µm: 17
Sensor NETD, mK: < 25
System NETD, mK: < 18
Frame rate, Hz: 50
Optics
Objective lens: F50 / 1.0
Magnification, x: 2 – 16
FOV (HxV), degrees: 12.4 x 9.3
FOV (HxV), m@100m: 21.8 x 16.3
Eye relief, m: 50
Display
Type: AMOLED HD
Resolution, pixels: 1024×768
Laser rangefinder
Max. measuring range, m: 800
Measurement accuracy, m: ± 1
Safety class for laser equipmentaccording to IEC 60825-1:2014 : 1
Wavelength, nm: 905
Video recorder
Video / photo resultion, pixel: 1024×768
Video / photo format: .mp4 / .jpg
Build-in memory: 16GB
WI-FI
Wireless protocol: Wi-Fi
Wireless standard: IEEE 802.11 b/g/n/ac
Frequency, Ghz: 2.4 / 5
Environmental characteristics
Degree of protectionIP code (IEC60529): IPX7 (waterproof)
Operating temperature range, °С: -25 – +50
Connections and compatibilities
Compatible mounts: Standard 30 mm rings
Supported application: Stream Vision 2, Stream Vision Ballistics
Shock resistance on the smooth-bore rifles, caliber: 12
Max. recoil power on rifled weapon (Eo), Joules: 6000
Power supply
Output voltage, : 3,7V
Battery type: Dual Li-Ion B-Pack Mini Power System: 2 A·h Changeable Battery (external) / 4.9 A·h Battery (internal)
Capacity, mAh: 2000 (external) + 4900 (internal)
Operating time on battery pack, hat t=22°С: 8.5h
External power supply, V: 5V; 9V (USB Type-C Power Delivery)
Weight & size
Body material: Aluminum alloy
Dimensions, mm: 420×78,5×94,5
Weight, kg: 1.05
